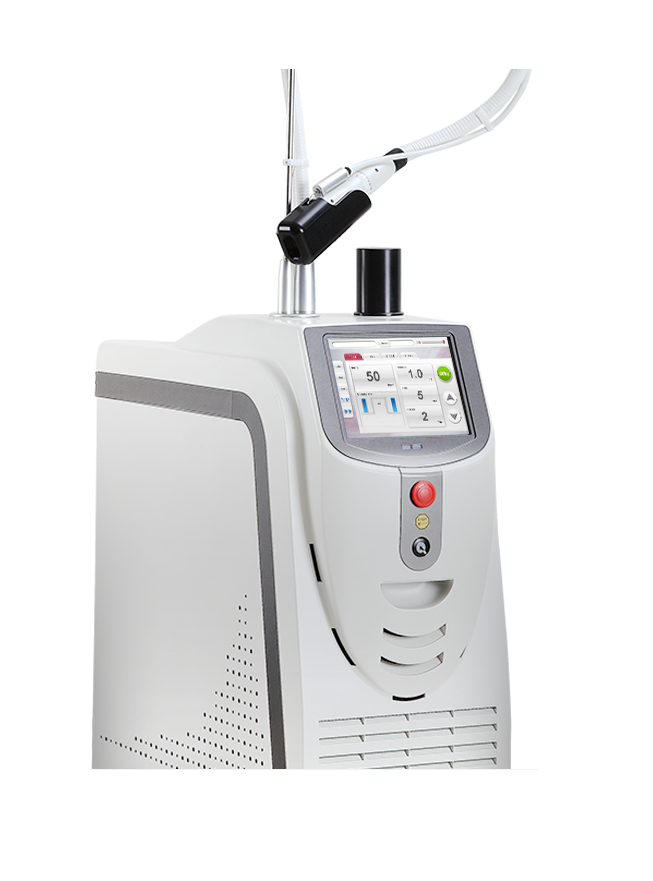

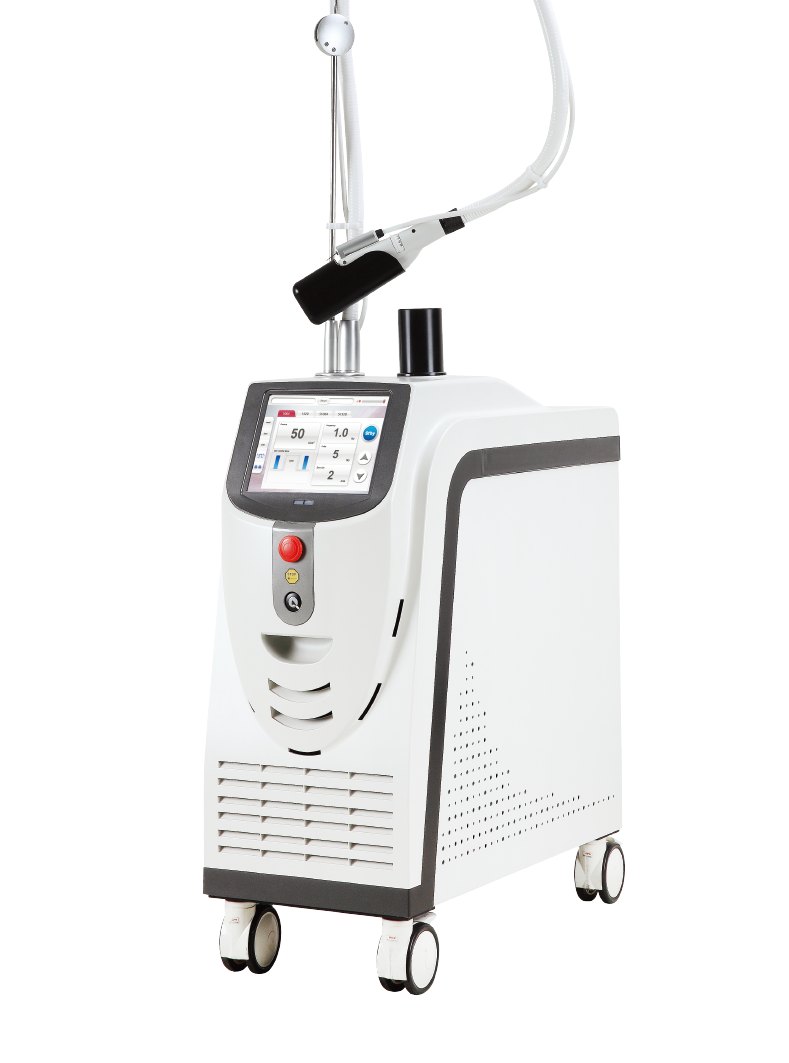

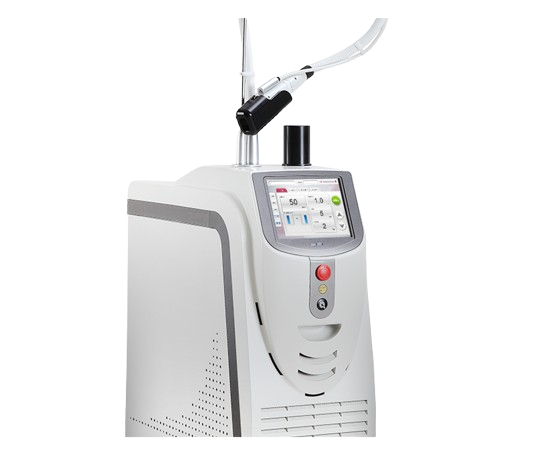

Long-Pulsed 1320nm & 1064nm Nd:YAG Laser

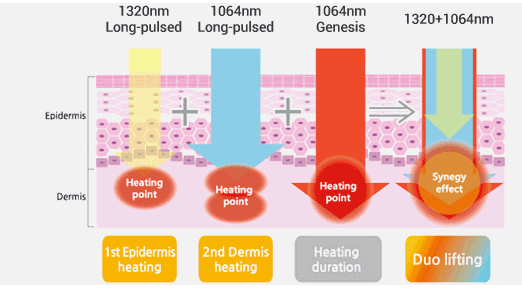

PRINCIPLE
Energy Control
Apply different level energy according to depth, width, thickness of target vein laser penetration depth varies upon spot size and pulse duration. Find proper parameter for the target depth to test the energy level before procedure.
×
Nature
SPECIFICATIONS
System Type: Long Pulsed Nd : YAG.
Wavelength: 1064nm & 1320nm.
Maximum Energy: 100J(1064nm) / 30J(1320nm).
Pulse Duration: 0.3 to 1ms(Short) 1 to 100ms(Long).
Repetition Rate: Single, Up to 10Hz.
Spot size: 2 to 6, 8, 10, 12, 14, 16, 18, 20 mm.
Cooling System: Skin Cooling Spray, Sapphire Window
Contact Cooling.
Spot size: 2 to 6, 8, 10, 12, 14, 16, 18, 20 mm.
Dimension: 354(W) x 896(D) x 923(H)mm.
Weight: 80kg.
