PRINCIPLE

Beam Profile

Perfcet Top-Hat mode

3D Beam Profile test

PTPTM (Photoacoustic Twin Pulse) Mode

×

Mountains

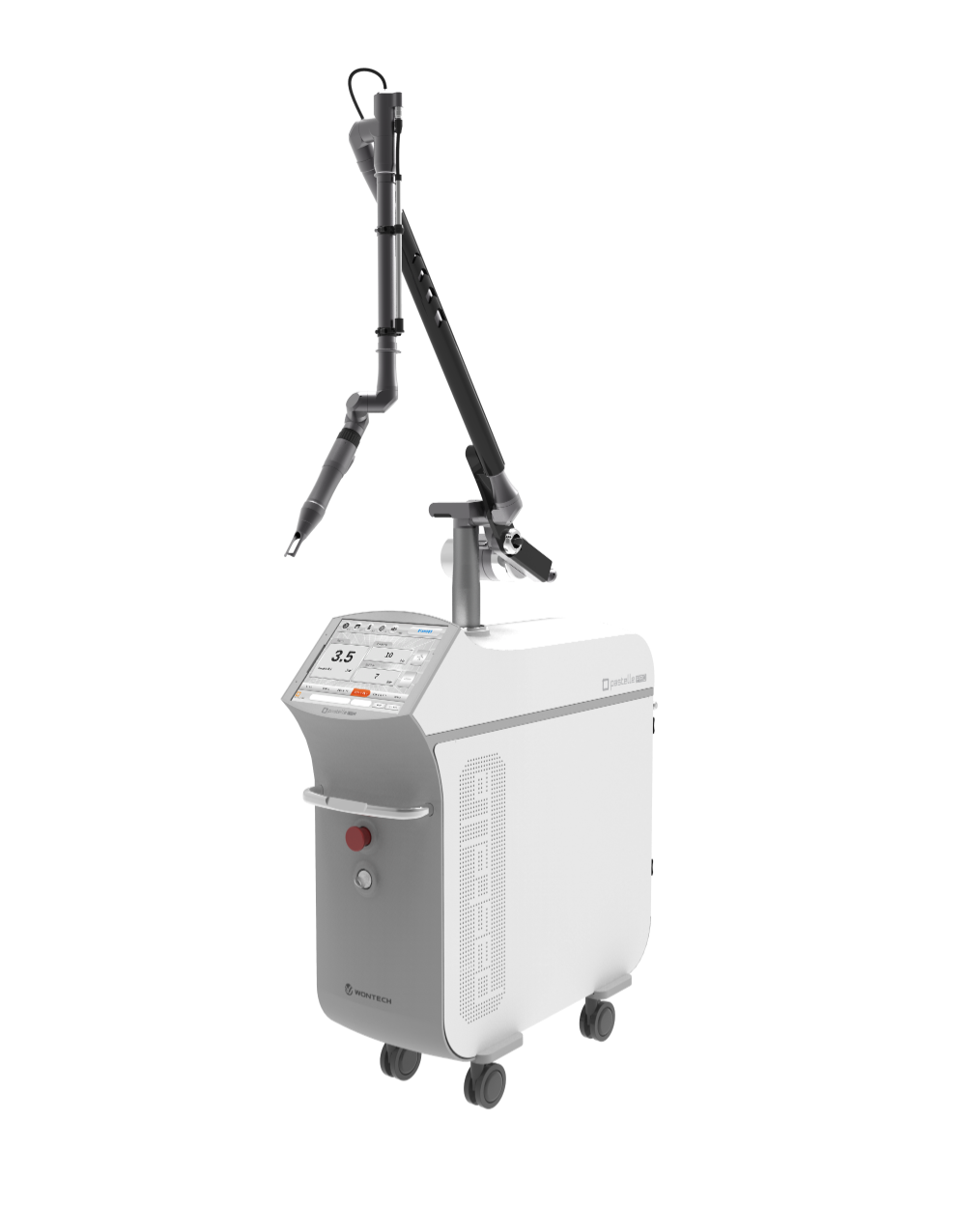

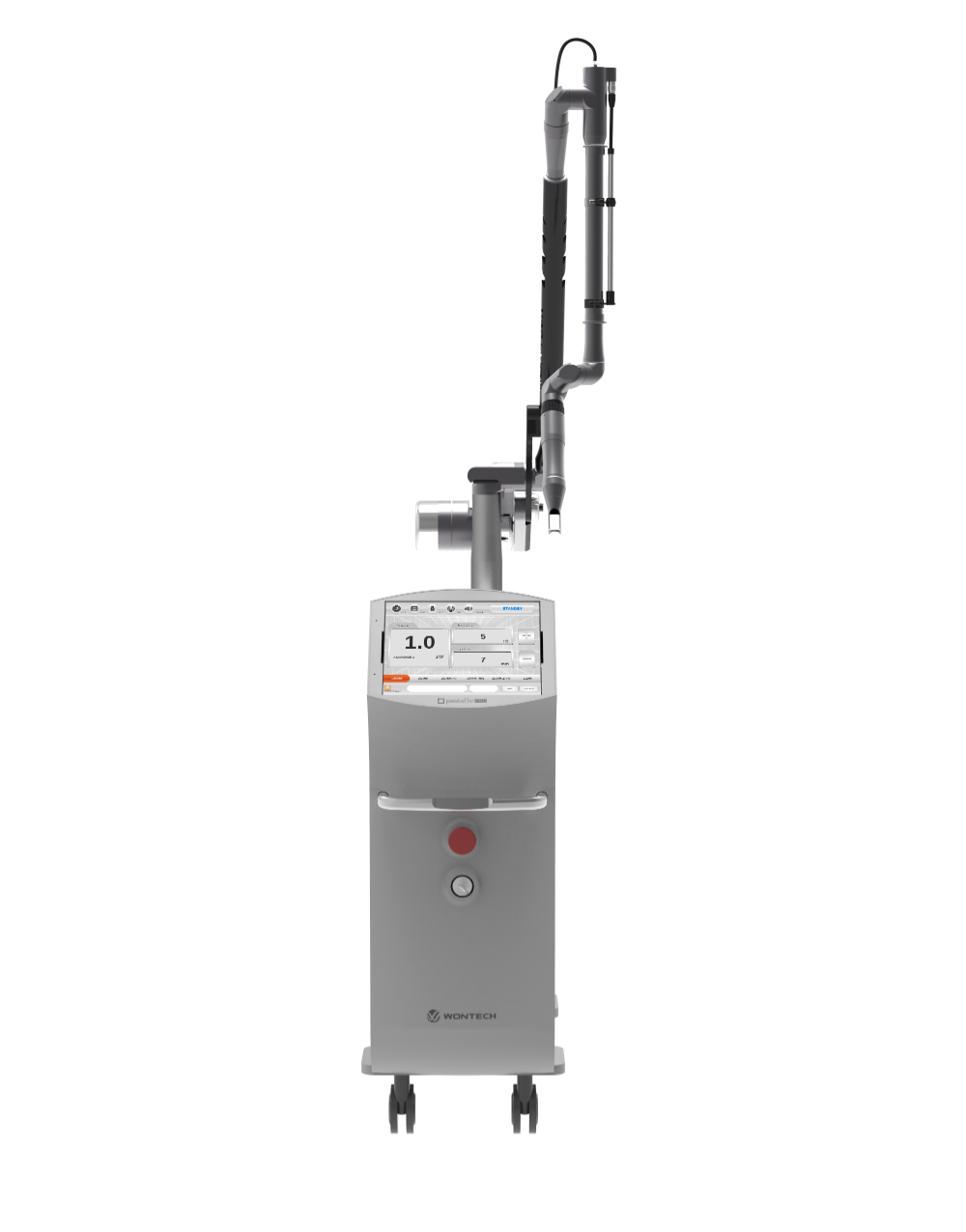

Irradiation Type: Q-Switched Nd : YAG Laser.

Wavelength: 532nm & 1064nm.

Max Energy: 532nm : 500mJ, 1064nm : 1,300mJ, PTP Mode : 1,600mJ, Genesis, mode : 3,500mJ.

Pulse duration: 4 to 48ns(Q-Switched mode)80 to 480㎲(Genesis mode)

Repetition Rate: Up to 10Hz

Spot Size: 2 to 10mm.

Dimension: 400(W)X805(D)X871(H)mm.

Weight: 60kg.

Zoom H/P

Collimation H/P

DYE Handpiece
(595nm/660nm)
